This guide shows you how to automatically write every completed HuskyVoiceAI call into a Google Sheet using n8n. You’ll end up with a clean, searchable call log that your team can filter, share, and report on.

What you’ll build

HuskyVoiceAI → (call.completed webhook) → n8n → Google Sheets (Append Row)

You’ll log:

• Call ID, status, direction, number dialed

• call_duration_seconds (numeric)

• Agent name

• Analytics (sentiment, interest level, summary, next steps)

• Recording URL

• Transcript (flattened into one field)

Prerequisites

• HuskyVoiceAI account with Webhooks enabled

• n8n (Cloud or self-hosted)

• Google account access to Google Sheets

• A Google Sheet (or permission to create one)

Reliability note: HuskyVoiceAI retries failed webhooks (up to 3 times). Your n8n webhook should return 2xx within 10 seconds.

Step 1 — Create your Google Sheet (Call Log template)

Create a new Google Sheet named: HuskyVoice Call Log

In row 1, paste these headers:

1. event_id

2. event_type

3. created_at

4. call_id

5. status

6. direction

7. call_to

8. duration_seconds

9. agent_name

10. sentiment

11. interest_level

12. summary

13. next_steps

14. recording_url

15. call_transcript

16. triggered_at

17. completed_at

✅ Keep duration_seconds numeric so you can chart and aggregate it in Sheets.

Step 2 — Create the n8n workflow

2.1 Add a Webhook trigger node

1. In n8n, click New Workflow

2. Add node: Webhook

3. Configure:

• HTTP Method: POST

• Path: huskyvoice/call-events

• Response Mode: On Received (respond immediately)

4. Go back to the workflow as data is stored automatically

You will see a Test URL and a Production URL.
Use Test URL while setting up, then switch to Production URL later.

2.2 Connect HuskyVoiceAI webhook to n8n

In HuskyVoiceAI:

1. Go to Webhooks

2. Add a new webhook endpoint

3. Paste your n8n Webhook Test URL

4. Select events:

• call.completed

• (Optional later) call.failed

5. Save

Now trigger a test call (or any call) so HuskyVoiceAI sends a call.completed event.

Back in n8n:

• Click Execute workflow (Test mode)

• Trigger a call in HuskyVoiceAI

• You should see the webhook node receive payload data




Step 3 — Normalize fields (Set node)

Add a Edit Fields (Set) node after the Webhook.

3.1 Configure the Set node

• Drag input fields or add field

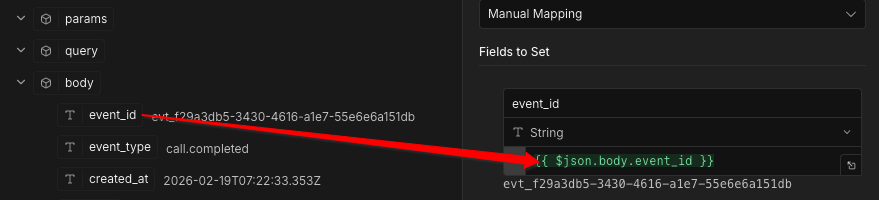

           Under fields to set, provide the text mentioned below on the left in the "name" field and map the json value from the input data             on the left by dragging it from there

Use these expressions exactly (right side):

• event_id → {{$json.event_id}}

• event_type → {{$json.event_type}}

• created_at → {{$json.created_at}}

• call_id → {{$json.data.call_id}}

• status → {{$json.data.status}}

• direction → {{$json.data.call_direction}}

• call_to → {{$json.data.call_to}}

✅ duration_seconds (number):

• duration_seconds → {{ Number($json.data.call_duration_seconds) }}

• agent_name → {{$json.data.agent_name}}

• sentiment → {{$json.data.call_analytics?.sentiment || ""}}

• interest_level → {{$json.data.call_analytics?.interest_level || ""}}

• summary → {{$json.data.call_analytics?.summary || ""}}

• next_steps → {{$json.data.call_analytics?.next_steps || ""}}

• recording_url → {{$json.data.call_recording}}

3.2 Flatten transcript into a single text field

Add this field:

• call_transcript → {{ $json.body.data.call_transcript }}

And finally:

• triggered_at → {{$json.data.call_triggered_at}}
• completed_at → {{$json.data.completed_at}}

Step 4 — Append to Google Sheets

Add a node after Set: Google Sheets

4.1 Connect your Google account

• In the Google Sheets node, click Credentials

• Connect your Google account (OAuth)

4.2 Configure the node

• Operation: Append

• Document: select your HuskyVoice Call Log

• Sheet: select the worksheet (e.g., Sheet1)

4.3 Map fields to columns

Map each header column to the matching Set output field:

• event_id → {{$json.event_id}}
• event_type → {{$json.event_type}}
• created_at → {{$json.created_at}}
• call_id → {{$json.call_id}}
• status → {{$json.status}}
• direction → {{$json.direction}}
• call_to → {{$json.call_to}}
• duration_seconds → {{$json.duration_seconds}}
• agent_name → {{$json.agent_name}}
• sentiment → {{$json.sentiment}}
• interest_level → {{$json.interest_level}}
• summary → {{$json.summary}}
• next_steps → {{$json.next_steps}}
• recording_url → {{$json.recording_url}}
• call_transcript → {{ $json.body.data.call_transcript }}
• triggered_at → {{$json.triggered_at}}
• completed_at → {{$json.completed_at}}



• Run another test call — you should see a new row appear.

Step 5 — Go live (Production URL)

Once testing works:

1. Copy n8n’s Production Webhook URL by clicking on the webhook
2. Update the webhook endpoint URL in HuskyVoiceAI to the Production URL
3. In n8n, publish the workflow




Optional: Add basic filtering

If you only want to log certain calls, insert an IF node between Webhook → Set.

Examples:

Only outbound calls

Condition:

• {{$json.data.call_direction}} equals outbound

Only log calls longer than 10 seconds

Condition:

• {{ Number($json.data.call_duration_seconds) }} is greater than 10

Because webhooks can retry, a rare failure could result in duplicate rows if n8n is slow or Sheets errors temporarily.

Two easy options:

Option A — Use Google Sheets “Lookup” before append

1. Add a Google Sheets node before Append:

• Operation: Lookup

• Lookup column: event_id

• Lookup value: {{$json.event_id}}

2. Add an IF node:

• If lookup found → do nothing

• If lookup not found → Append row

Option B — Add a “Unique” tab and dedupe manually

If you want to keep it super simple, just log everything and use Sheets filters/unique logic later. (Option A is better.)

Security (Optional): Verify webhook signature

If your webhook configuration enables signatures, HuskyVoiceAI will send:

• Header: X-Webhook-Signature (HMAC-SHA256)

In n8n you can verify this using a Code node (before Set), using your signing secret stored in credentials/environment variables.

If you want, I’ll provide the exact n8n Code node snippet for signature verification based on your final header format.

Troubleshooting

Webhook is not receiving anything

• Ensure your n8n webhook URL is publicly accessible

• Confirm HuskyVoiceAI webhook endpoint saved correctly

• Check n8n execution logs (Webhook node should show incoming request)

Google Sheets “permission denied”

• Reconnect Google credentials

• Confirm your Google account has edit access to the Sheet

Transcript is empty

• Some calls may not contain transcript. The workflow safely logs an empty string.

Duration shows as text in Sheets

• Ensure Set node uses:

• {{ Number($json.data.call_duration_seconds) }}

Example call.completed payload (trimmed)

{
  "event_id": "evt_5a221b43-8f16-423e-98ee-63c6d80426a4",
  "event_type": "call.completed",
  "created_at": "2026-02-17T08:27:16.281Z",
  "data": {
    "call_id": "e5ba3853-0873-4b73-95e5-81814e532956",
    "status": "completed",
    "call_direction": "outbound",
    "call_to": "+917531082106",
    "call_duration_seconds": 16,
    "agent_name": "OutboundTestProd",
    "call_recording": "https://studio.huskyvoice.ai/spark/calls/e5ba3853-0873-4b73-95e5-81814e532956",
    "call_analytics": {
      "summary": "The user started the call with a simple greeting...",
      "sentiment": "neutral",
      "interest_level": "low_interest",
      "next_steps": "No specific action recommended"
    },
    "call_transcript": [
      { "speaker": "user", "text": "Hello." }
    ]
  }
}
